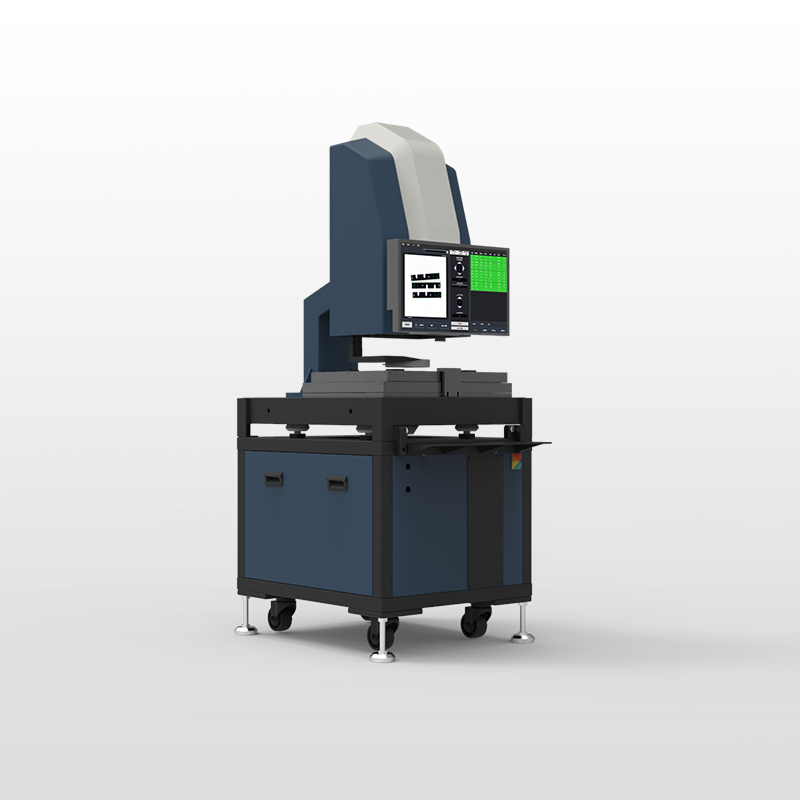

2D Intelligent Optical Measuring Instrument(Medium Platform)

Model : AL-2AT / AL-2AT2-100

ADVANTAGES AND FEATURES

  • The ultra-large stage is 7.5 times greater than the regular one, which implements to quickly measure the large workpieces.
  • The operation interface is easy to comprehend, so anyone can learn quickly and complete measuring easily
  • Report for Auto Recognition and Measurement of Artificial Intelligence (AI) and Statistic Analysis of Auto-generation Engineering

CORE TECHNOLOGY

Special optical lens automatically adjusts the focal length /Automatic edge capturing /With Sub-pixel Processing/Automatic correction of ambient light changes/Measurement data digitization

APPLICATIONS OF AL-2AT SERIES

First RD work and initial product inspection/PQC and sampling inspection/OQC inspection/IQC inspection

DIVERSIFIED MEASUREMENT USAGE

Applicable for: Measurements of gaskets and sealing parts, connectors, springs, engineering plastic parts, fabricated parts for precision machinery, automobile and aerospace parts, stamping parts, gears, bearings, hardware fasteners, die cast pieces, etc.

Model number AL-2AT1-100
Light receiving lens Telecentric Lenses
Lighting system Telecetric light
Image measurement Measurement range (X axis xY axis) 85mm * 65mm(Nostage movement)
Minimum displayunit 0.1μm
Measurement acccuracy ±5μm (Nostage movement)(*1、3)
±(7+0.02L)μm(Nostage movement)(*1、2、3)
Repeatability Accuracy ±1.5μm(*、3、4)
±3μm(*1、3、4)
Focusing range 130mm
Dimensional size 1140mm(L)*980mm(W)*1900mm(H)
Weight 430kg
Power supply AC 220V/60Hz/2500W

*1.Environmental requirements of the equipment: Operating temperature is 20 °C±  5°C, humidity is 30%~80%, and vibration is <0.002g, lower than 15Hz.

*2.L is coordinate table movement. (millimeter)

*3.Equipment accuracy is subject to the actual ex-factory accuracy.

*4.Repeatability accuracy refers to the tolerance of repeated measurement for immobile items in the same exact spot.。





Seals

hardware fasteners

Stamping Parts
